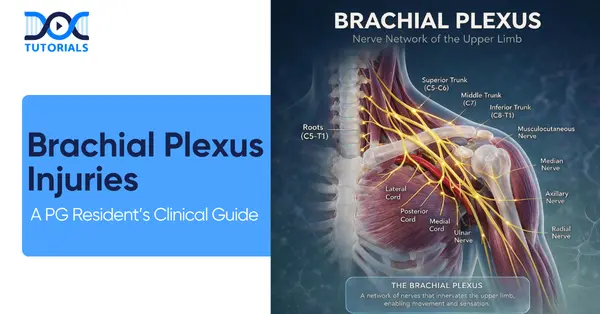

The Architectural Foundation of the Brachial Plexus

The biological wiring diagram of the brachial plexus follows a highly specific and logical sequence of formation. The sequence flows from Roots to Trunks to Divisions to Cords to Branches. Understanding this anatomical sequence is the first step in diagnosing and mapping any brachial plexus injury.

Roots, Trunks, and Divisions

The network originates from the ventral rami of spinal nerves C5, C6, C7, C8, and T1. These nerve roots quickly merge to form three distinct trunks.

• The Upper Trunk is formed by the union of the C5 and C6 roots.

• The Middle Trunk is formed exclusively by the continuation of the C7 root.

• The Lower Trunk is formed by the union of the C8 and T1 roots.

Once the trunks are formed, they traverse towards the clavicle and each splits into anterior and posterior divisions. This division step is crucial because it reorganizes the nerve fibers to eventually supply the anterior (flexor) and posterior (extensor) compartments of the upper extremity.

Cords and Terminal Branches

Following the divisions, the nerves reorganize into three cords. The cords of the brachial plexus utilize a strict nomenclature that is based entirely on their anatomical relationship to the axillary artery.

• The Lateral Cord is formed by the anterior divisions of the Upper and Middle trunks.

• The Medial Cord is formed solely by the anterior division of the Lower trunk.

• The Posterior Cord is uniquely formed by the posterior divisions from all three trunks (Upper, Middle, and Lower).

Mastering this RTDCB (Roots, Trunks, Divisions, Cords, Branches) sequence and the specific cord relations to the axillary artery will allow you to localize lesions perfectly in clinical practice.

Do all segments and connections within the brachial plexus give off peripheral nerve branches?

Answer: No. A defining anatomical rule of the brachial plexus is that divisions give off absolutely no branches. Assuming that all parts of the plexus give off branches is a very common exam trap designed to test your foundational anatomical knowledge.

Specific Nerve Branches and Clinical Correlates

The brachial plexus gives rise to multiple nerves, each with distinct motor and sensory responsibilities. Recognizing the function of these nerves helps quickly identify the level of a brachial plexus injury.

Root and Trunk Level Branches

Several nerves branch off before the formation of the cords.

• The Dorsal Scapular nerve and a contribution to the Phrenic nerve branch directly from the C5 root.

• The Long Thoracic nerve, which provides motor supply to the serratus anterior, originates from roots C5, C6, and C7.

• The Superior Trunk gives off the Suprascapular nerve and the Nerve to the subclavius.

A lone C5 root injury can drastically compromise respiratory function due to its critical contribution to the phrenic nerve and neck muscles. Furthermore, a brachial plexus injury to the upper roots (C5-C6) results in Erb’s palsy, while an injury to the lower roots (C8-T1) results in Klumpke’s palsy.

Cord Level Terminal Branches

The lateral, medial, and posterior cords give rise to the major terminal branches of the upper limb.

• The Lateral Cord branches into the Lateral Pectoral nerve (supplying the Pectoralis major), the Musculocutaneous nerve (supplying the Biceps, Brachialis, and Coracobrachialis), and the Lateral root of the Median nerve.

• The Medial Cord branches into the Medial Pectoral nerve, Medial Cutaneous nerves, the Ulnar nerve, and the Medial root of the Median nerve.

• The Posterior Cord gives rise to the Superior and Inferior Subscapular nerves, the Thoracodorsal nerve, the Axillary nerve, and the Radial nerve.

The Radial nerve is solely responsible for all extension mechanisms of the upper limb, including elbow, wrist, and digit extension. When evaluating hand innervation, be aware of ulnar motor exceptions: the thenar muscles and the lateral two lumbricals are median-innervated, not ulnar-innervated.

Mechanisms and Patterns of a Brachial Plexus Injury

When evaluating a patient with a brachial plexus injury, identifying the mechanism of trauma helps narrow down the damaged anatomy. Approximately 50% of these plexus injuries are caused by traction, which is predominantly seen in motor vehicle accidents (MVAs).

Common Etiologies and Vascular Associations

The anatomical location of the trauma often correlates strongly with specific vascular injuries. Distinguishing between supraclavicular and infraclavicular injury patterns clinically is a necessary skill for PG residents. Identifying the associated vascular injury will expertly help you localize the exact level of the brachial plexus injury.

Injury Location	Anatomical Region	Mechanism of Injury	Associated Vascular Injury
Supraclavicular	Located above the clavicle	The neck and shoulder are violently forced apart	Subclavian artery
Infraclavicular	Located below the clavicle	Fractures or dislocations occurring around the shoulder joint	Axillary artery

Nerve Microanatomy and Injury Classifications

To fully grasp the severity and prognosis of a brachial plexus injury, you must understand the microscopic layers of peripheral nerves. The severity of a nerve injury depends entirely on the depth of connective sheath disruption.

The Layers of a Peripheral Nerve

The nerve is composed of several protective layers surrounding the functional core.

• Epineurium: This is the outermost nerve covering.

• Perineurium: This layer covers individual fascicles, or bundles of axons.

• Endoneurium: This innermost connective layer covers individual axons.

• Axon: This is the functional unit capable of regeneration.

Overall prognosis is inversely proportional to connective tissue sheath involvement. Intact connective sheaths are critically required for directed axonal regeneration. Therefore, a lone axonal injury where the sheaths remain intact always carries a more favorable prognosis compared to covering-sheath disruptions.

Seddon and Sunderland Systems

Accurate grading of the injury using the Sunderland system is the most critical principle in clinical management, as it directly dictates the binary choice between clinical observation and surgical intervention.

Sunderland Type	Seddon Equivalent	Histopathologic Changes	Recovery Potential
Type I	Neurapraxia	Myelin injury only (physiological conduction block)	Spontaneous auto-recovery within days to weeks
Type II	Axonotmesis	Axonal injury with an intact endoneurium	Auto-recovery expected due to intact sheath
Type III	Axonotmesis	Axonal and endoneurial injury	Spontaneous auto-recovery is still possible
Type IV	Neurotmesis (Mixed)	Perineurial injury and fascicular disruption	No spontaneous recovery; requires surgical repair
Type V	Neurotmesis	Complete nerve transection and epineurial disruption	No spontaneous recovery; requires surgical repair

A common exam trap is equating Sunderland Type III with a guaranteed failure of recovery; however, spontaneous auto-recovery is still possible in Type III injuries because the axon remains capable of regeneration despite endoneurial damage. Sunderland Type IV is the critical threshold where spontaneous recovery becomes impossible due to perineurial disruption. The worst possible scenario is a complete root avulsion from the spinal origin, which represents the most severe, irreparable form of a primary brachial plexus injury.

Clinical Assessment and Prognosis

In managing a brachial plexus injury, the Tinel sign is your primary clinical monitor for tracking axonal regeneration.

The presence of a progressing Tinel sign fundamentally rules out Neurapraxia (Sunderland Type I), because Neurapraxia does not feature Wallerian degeneration. It also rules out complete Neurotmesis (Sunderland Type V/VI), where regeneration cannot naturally cross the transection.

• If a Tinel sign is progressing distally, axonal regeneration is actively occurring, and the resident should continue to observe the patient.

• If the Tinel sign is absent or stops progressing, you must reassess for stalled recovery or immediately plan for surgical repair.

Frequently Asked Questions (FAQs)

1. What specific nerve roots form the brachial plexus?

The ventral rami origins of the brachial plexus are C5, C6, C7, C8, and T1.

2. Which roots are involved in Erb’s palsy?

Erb’s palsy is an upper root brachial plexus injury that involves the C5 and C6 roots.

3. Which roots are involved in Klumpke’s palsy?

Klumpke’s palsy is a lower root brachial plexus injury that involves the C8 and T1 roots.

4. What is the motor function of the long thoracic nerve?

The long thoracic nerve, derived from roots C5, C6, and C7, supplies motor function to the serratus anterior muscle.

5. How can a lone C5 root injury affect respiration?

A lone C5 root brachial plexus injury can compromise respiratory function due to its critical contribution to the phrenic nerve.

6. Does the ulnar nerve innervate all intrinsic hand muscles?

No, always check the exceptions for ulnar nerve hand supply: the thenar muscles and lateral two lumbricals are spared, as they are median-innervated.

7. What is the primary function of the radial nerve?

The radial nerve is solely responsible for all extension mechanisms of the upper limb, including elbow, wrist, and digit extension.

8. What characterizes Neurapraxia?

Neurapraxia is a physiological conduction block involving myelin injury only, with the axon perfectly intact, allowing spontaneous recovery within days to weeks.

9. What defines Axonotmesis?

Axonotmesis features axonal injury while the nerve sheath remains intact, and it always presents with Wallerian degeneration distal to the site of the brachial plexus injury.

10. What is the clinical significance of a progressing Tinel sign?

A progressing Tinel sign fundamentally indicates that axonal regeneration is occurring in Sunderland Types II and III injuries, and it effectively rules out Neurapraxia and complete Neurotmesis.
